About ParAbsorber
ParAbsorber is a lightweight energy-absorbing device integrated with parachute systems to reduce impact force during aircraft or UAV landings, activated by radar or radio signal before ground contact.
Registered Trade Mark
ParAbsorber®
European Union Trade Mark No: 018518472 Parachutes with Energy Absorbers
The ParAbsorber® relates to the field of the art o· parachutes for aircraft, etc., and it proposes an energy absorbing device which enables the absorption of a sufficient amount of the energy exerted on a parachute as a result of the, abruptly acting force thereupon during landing, thereby minimizing the otherwise adverse effects resulting from the excessive forces being exerted upon impact on the ground,

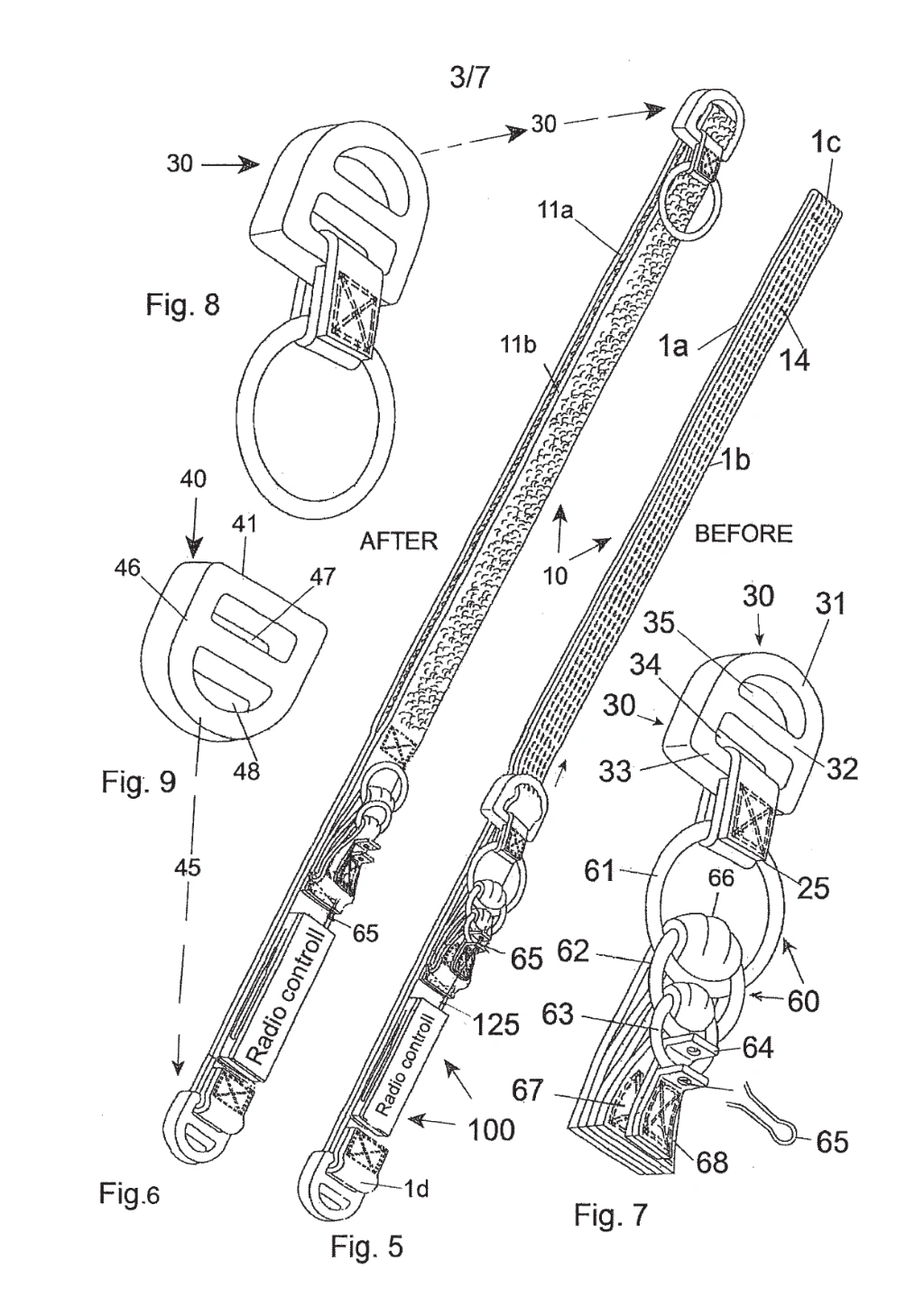

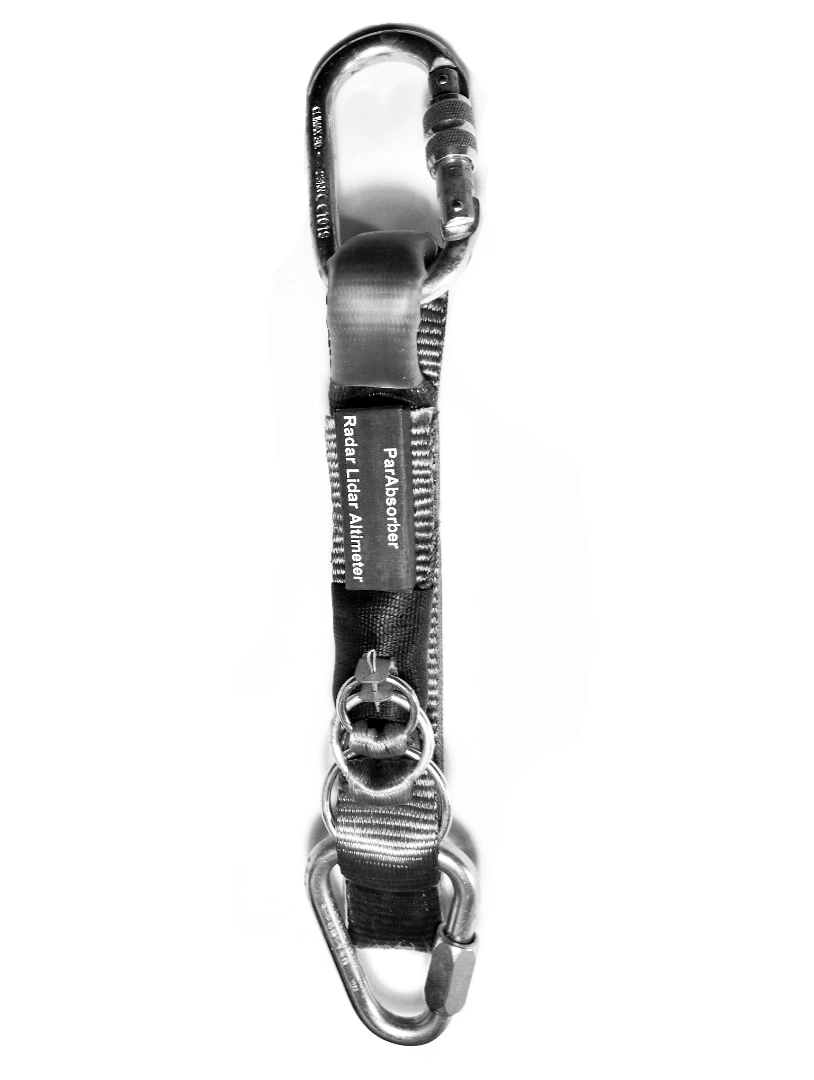

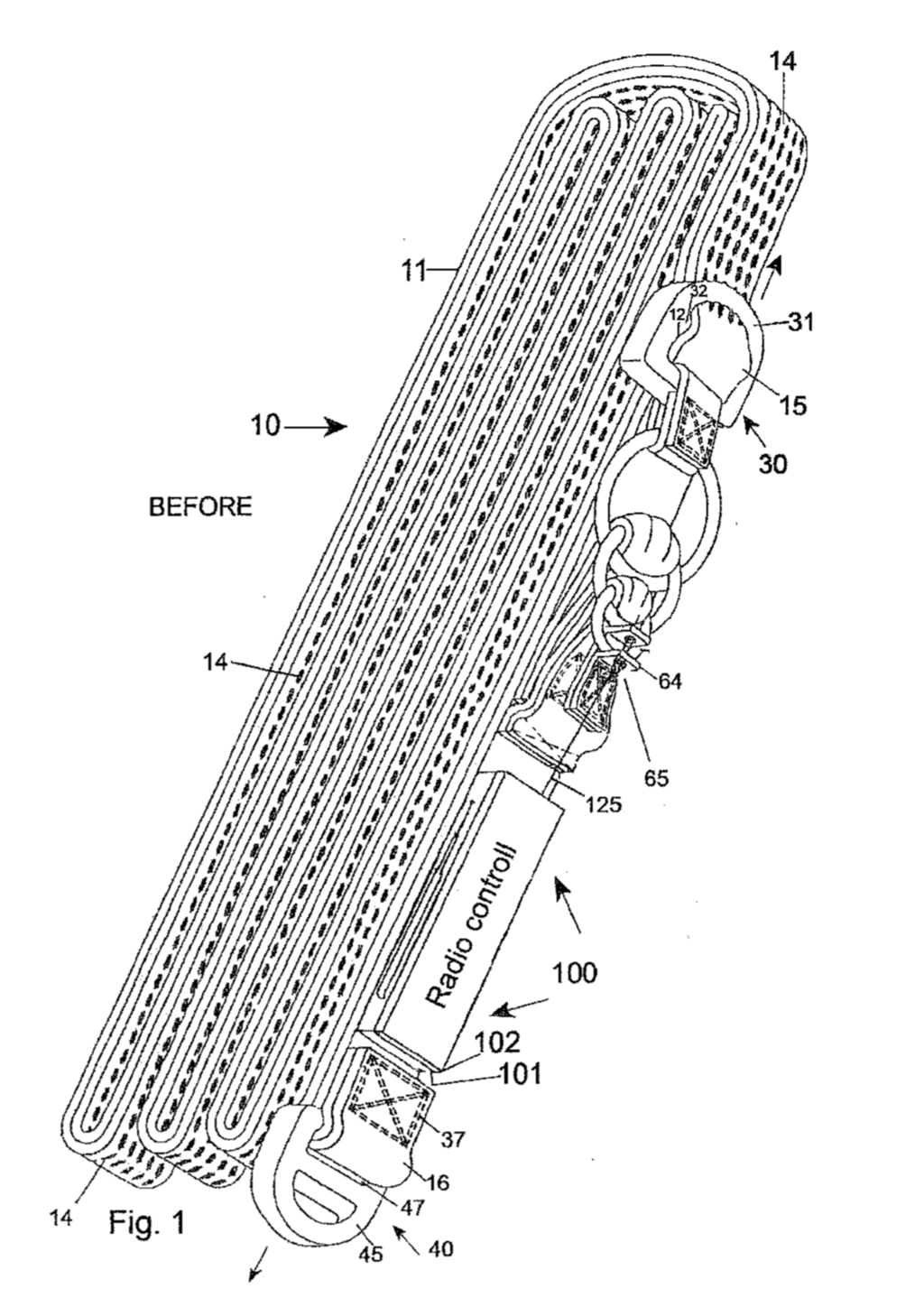

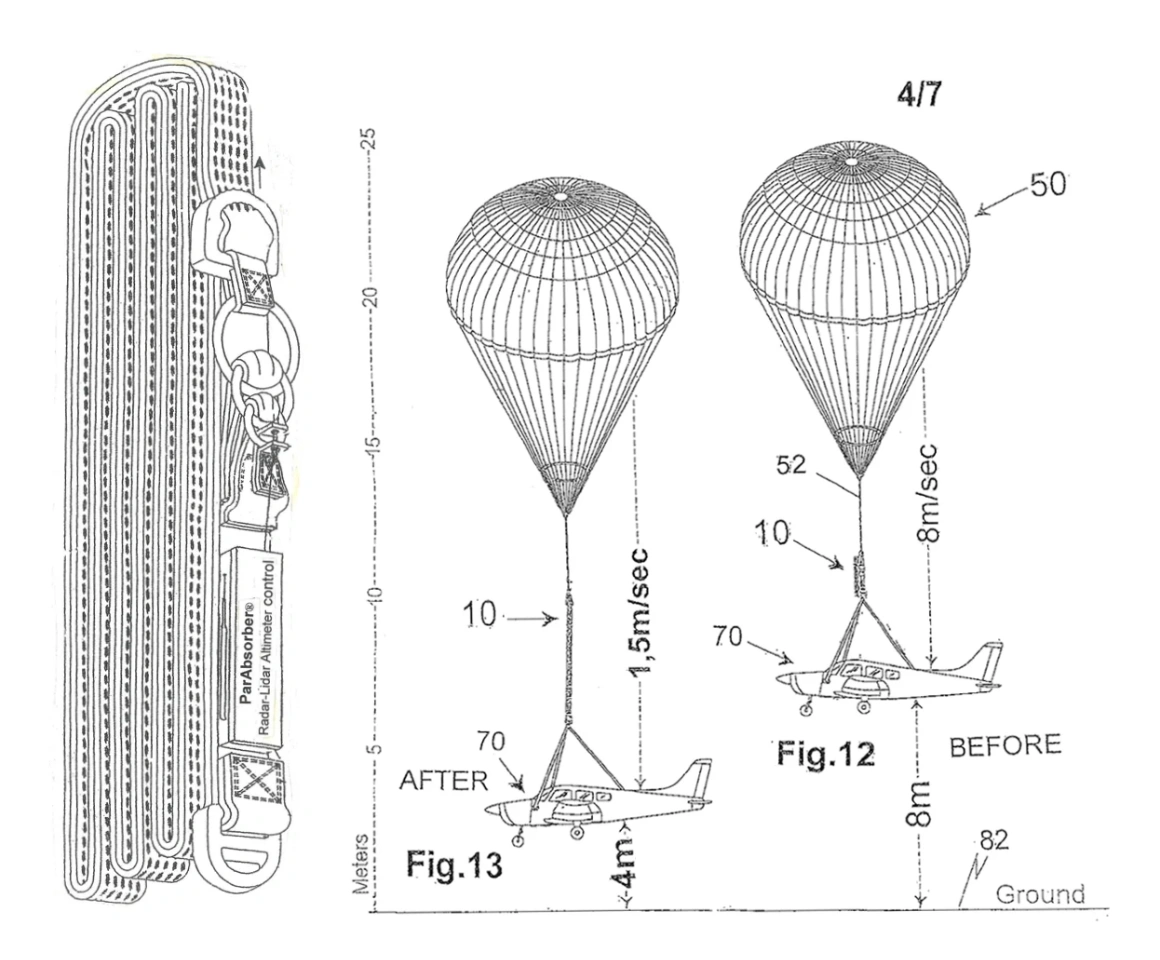

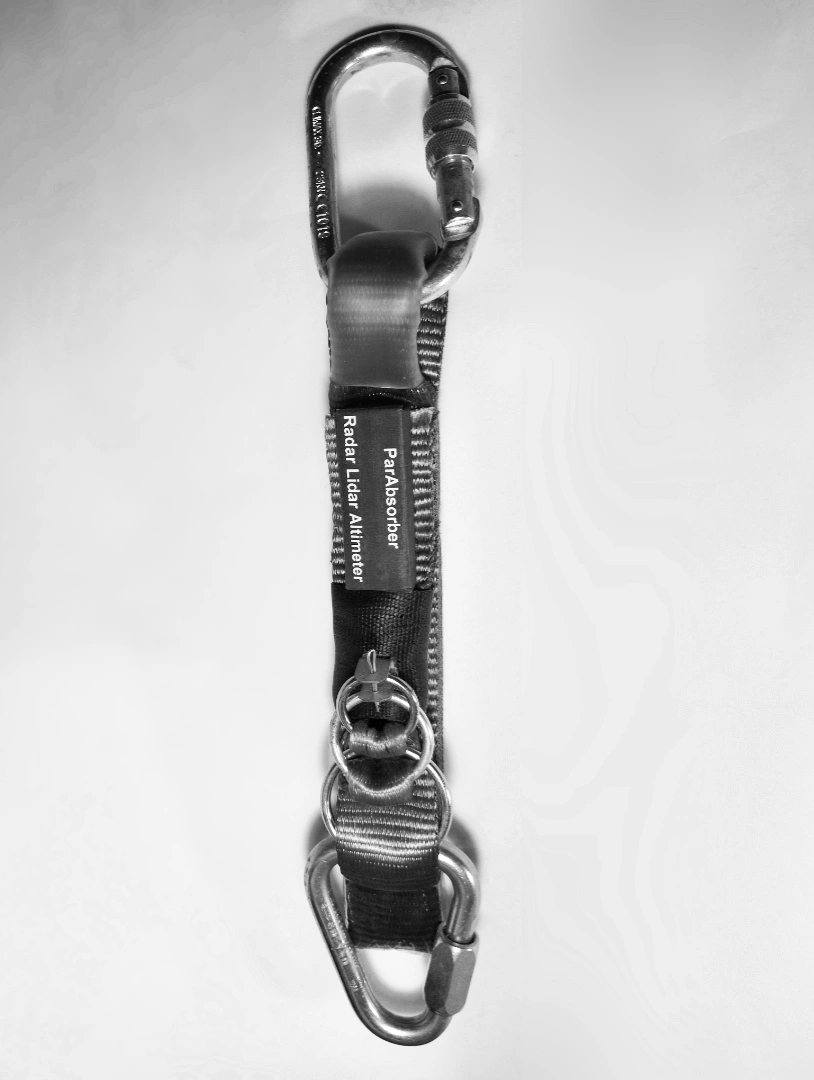

A Radar-Lidar Altimeter control the energy absorbing device connected to the main riser strap of an aircraft parachute. An aircraft has a radar controlled energy absorbing device connected to the main riser strap of a parachute The energy absorbing device has a strap folded in half lengthwise and sewn with lengthwise stitches. A first coupling is connected to a 3-ring release system containing a smaller ring,a mid-size ring, and a larger ring, and to a carabiner at the end of the parachutes main riser strap, a lower end of the energy absorbing device is connected to a second coupling to carabiner at the end of suspension straps.

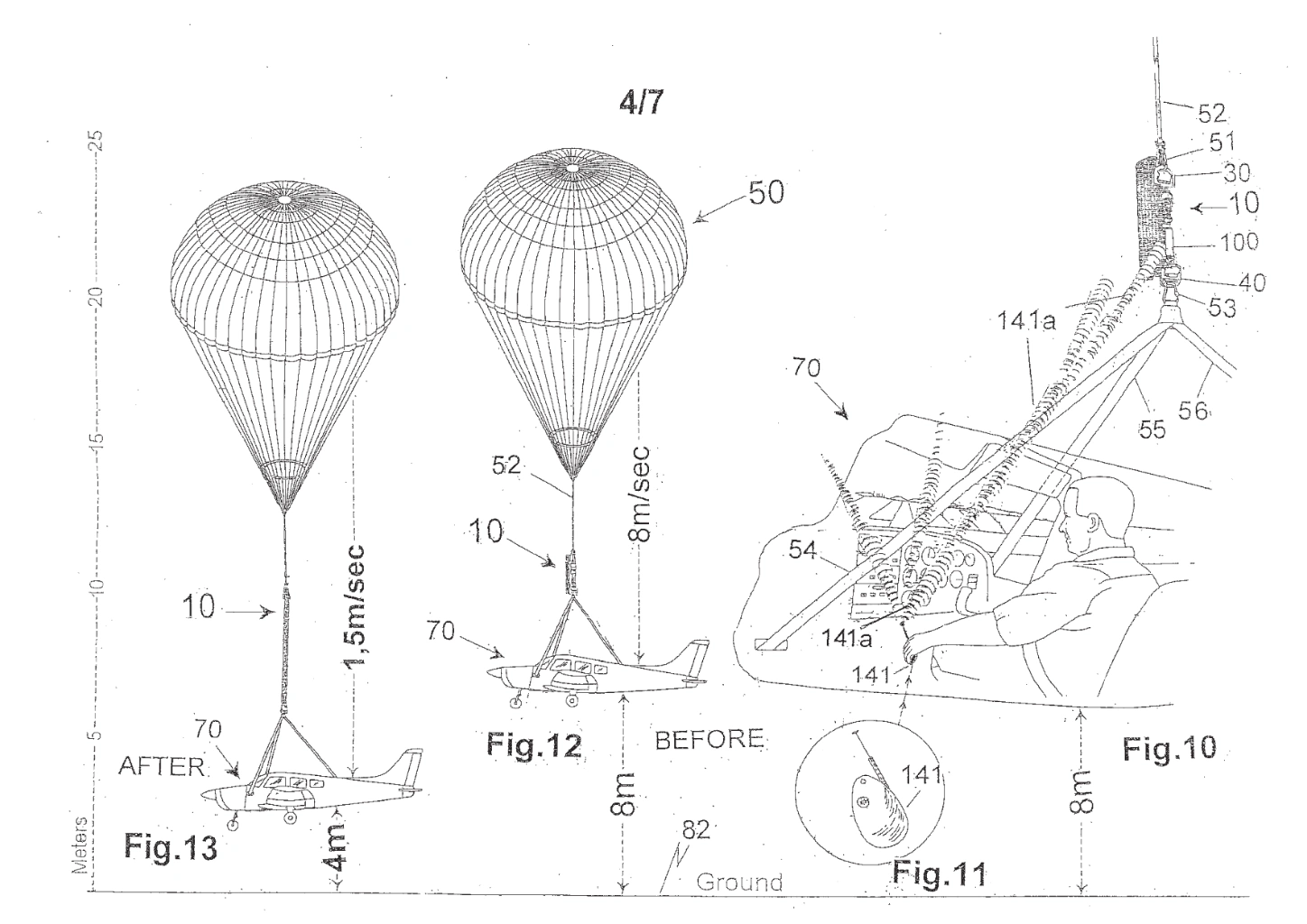

Contains a Radar-Lidar Altimeter with a mechanism , pulling a retaining pin of the 3-ring release system; during approach of the aircraft towards the ground, the first coupling is unlocked and released along with the larger ring, causing tearing of the stitches applying a counterforce to the weight of the aircraft and decelerating the fall, reducing the ground impact speed

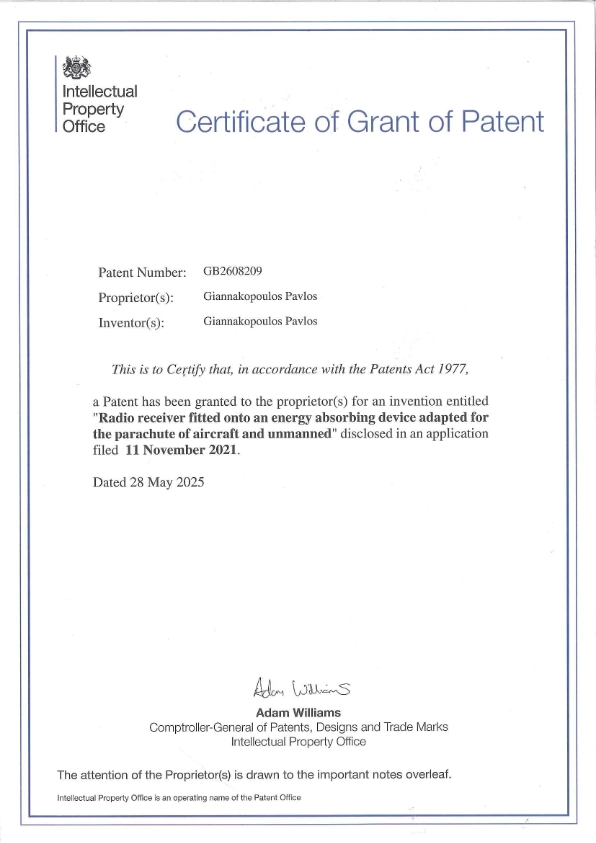

NEWTECHNOLOGY- Patents Pending
ParAbsorber®

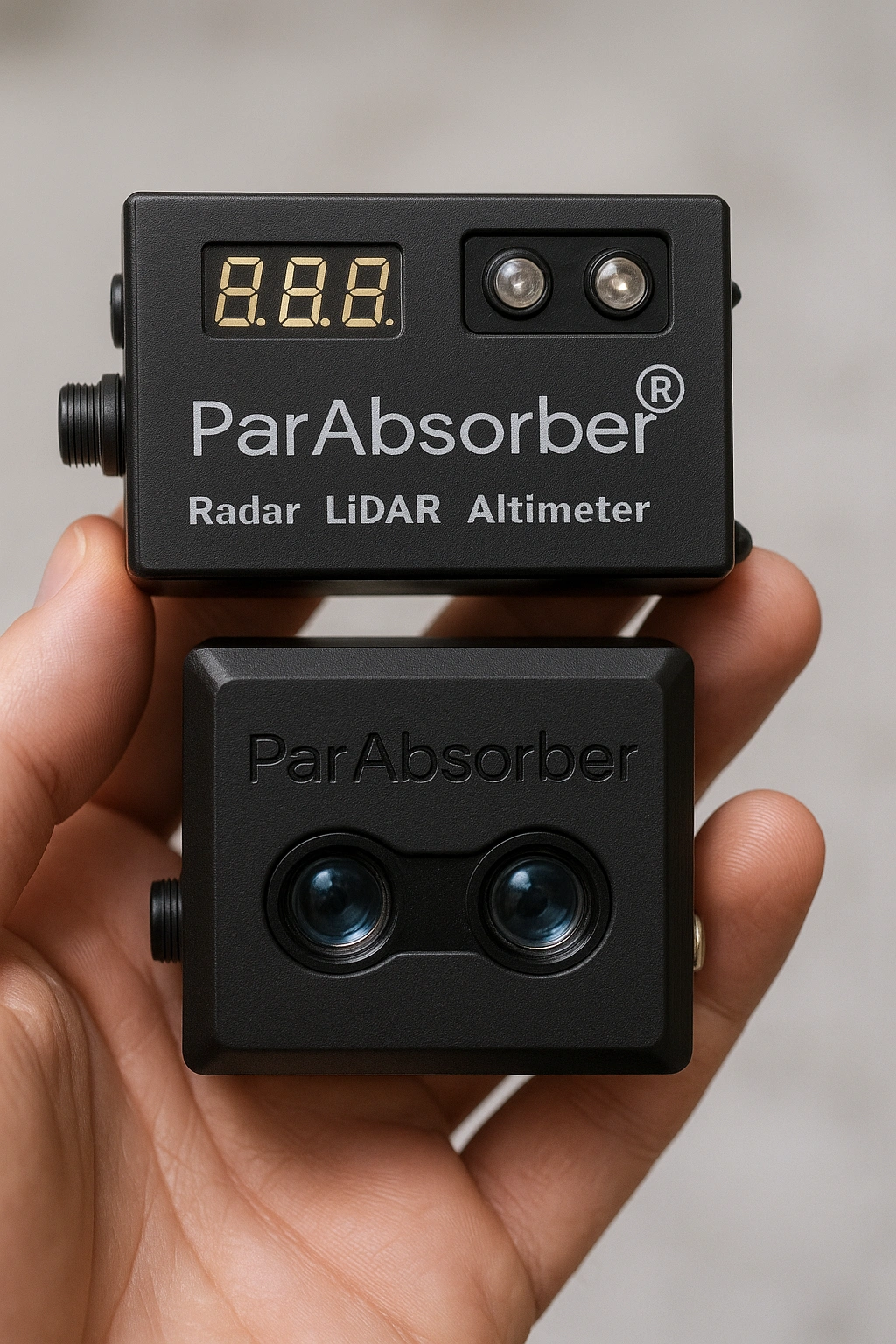

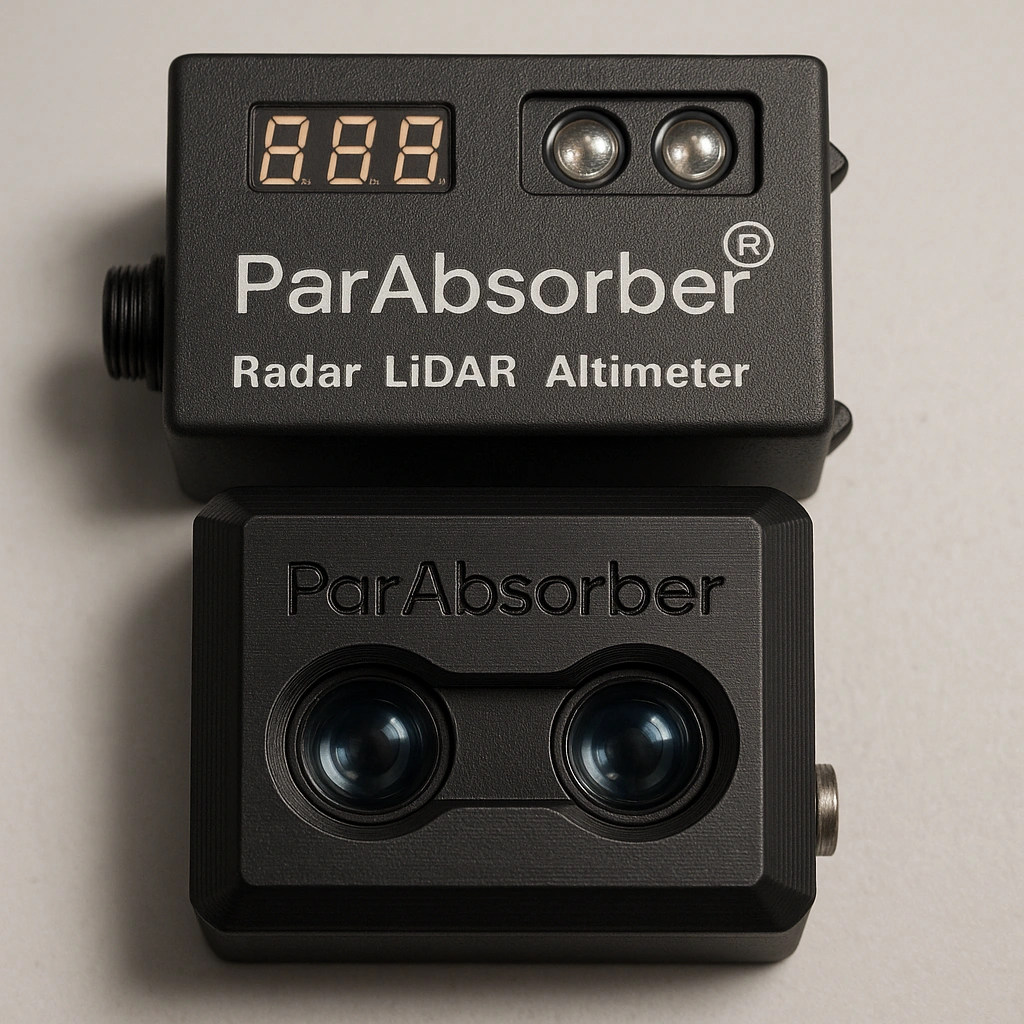

Radar LiDAR Altimeter

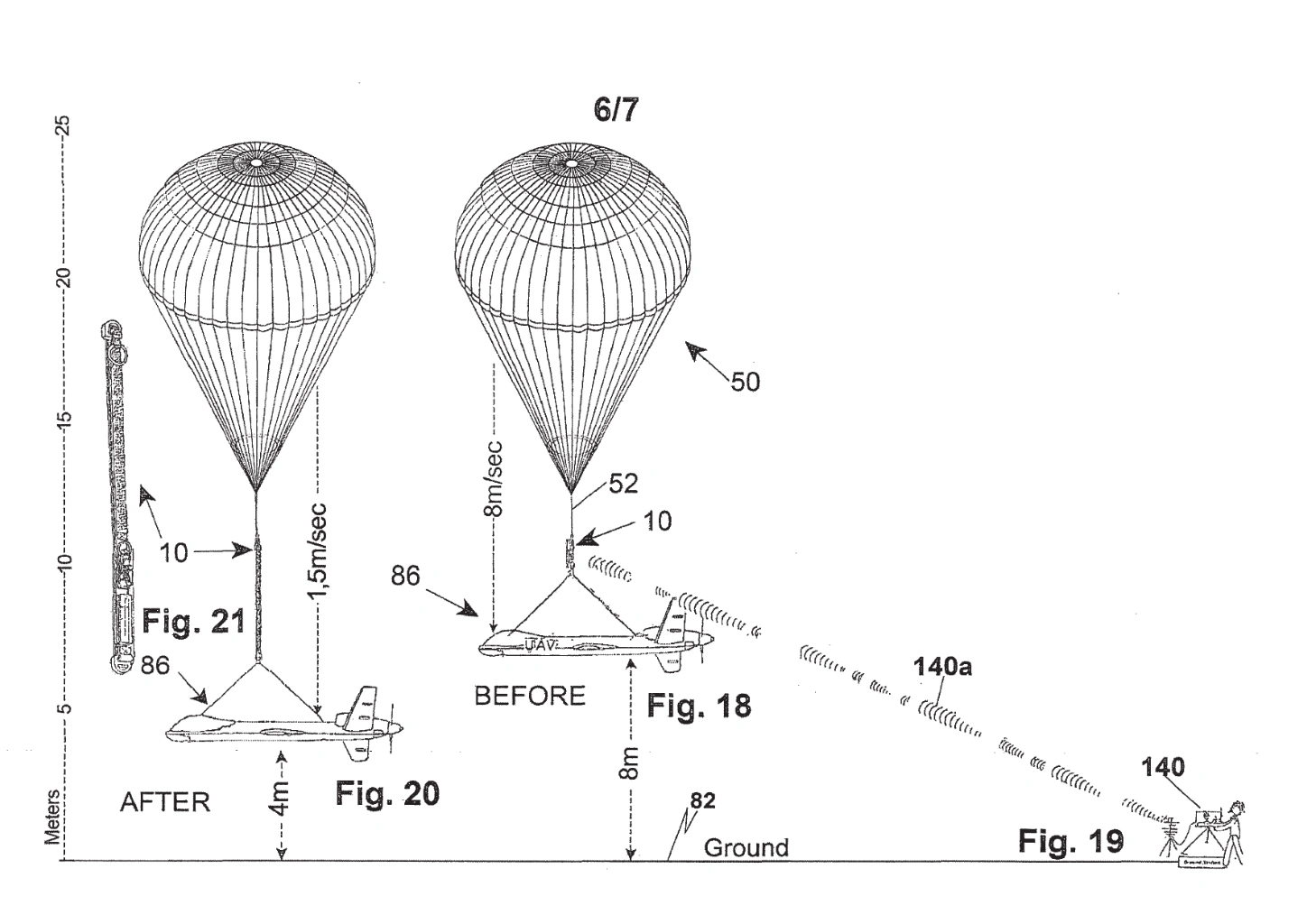

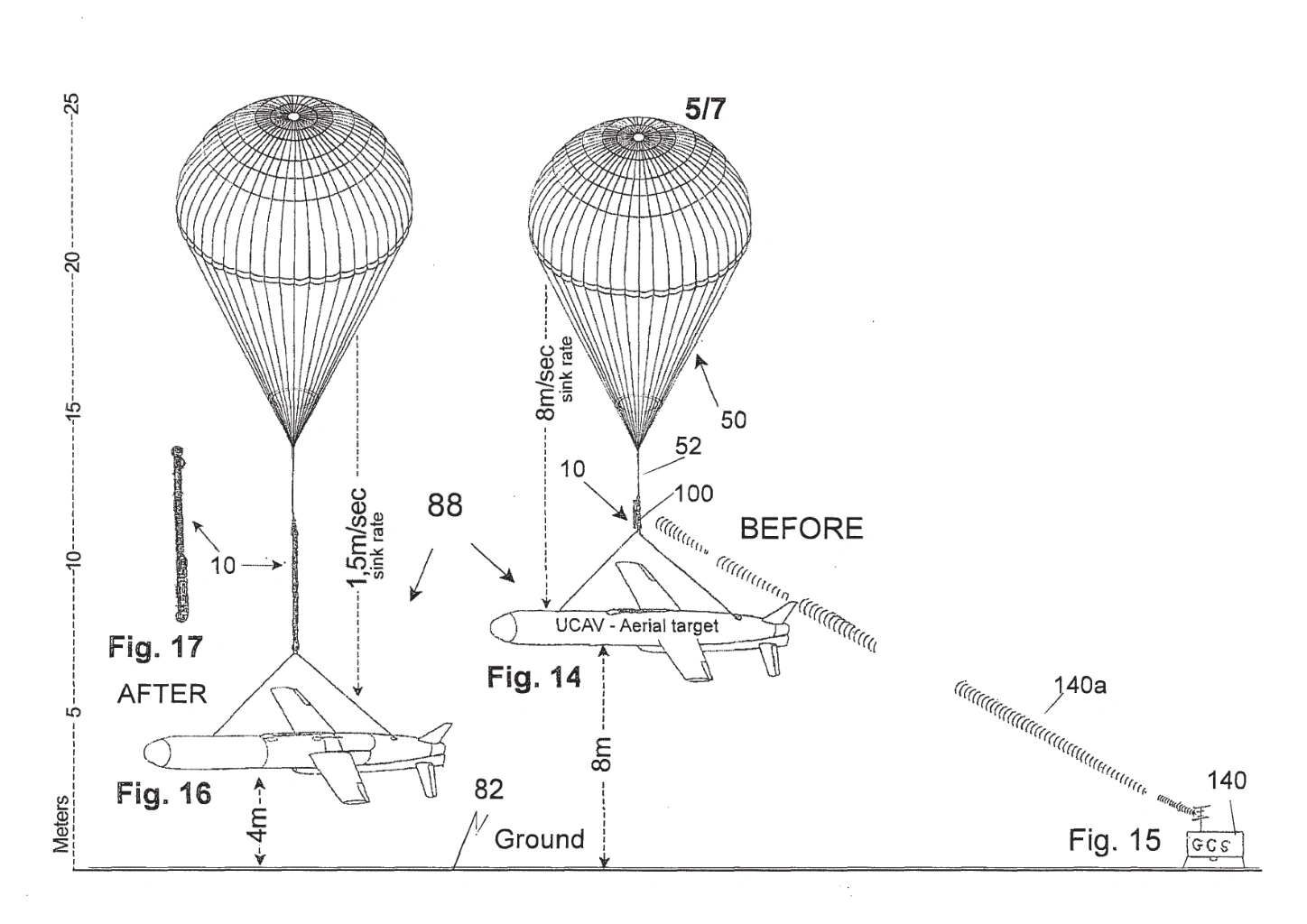

The ParAbsorber Radar LiDAR Altimeter is for the activation of the proposed Energy absorbing device before the ground at a height of approximately 7-8 m and as a result of said tearing a counterforce to the waight of the Aircraft and UAV Drones is exerted decelerating the fall and the impact speed thereof on the ground. The tearing of the stitched strap exerted by the 3ring. For these works there are tests in kN
ParAbsorber Radar LiDAR Altimeter brings new technology and the radar is placed under the aircraft-uav, facing the ground.
The Radar altimeter measures the height above the ground below an aircraft, uav connected to a parachute, by timing how long it takes a beam of radio waves to travel to the ground, reflect and return to the aircraft. This type of Radar altimeter provides the distance between the Radar antenna and the ground directly below it and in an emergency it activates the Energy absorbing device with a servo.
